ZYMKEY5

The essential hardware security module for Raspberry Pi

The essential hardware security module for Raspberry Pi. 640 key slots, easy to integrate plug-in module with seamless Bootware integration.

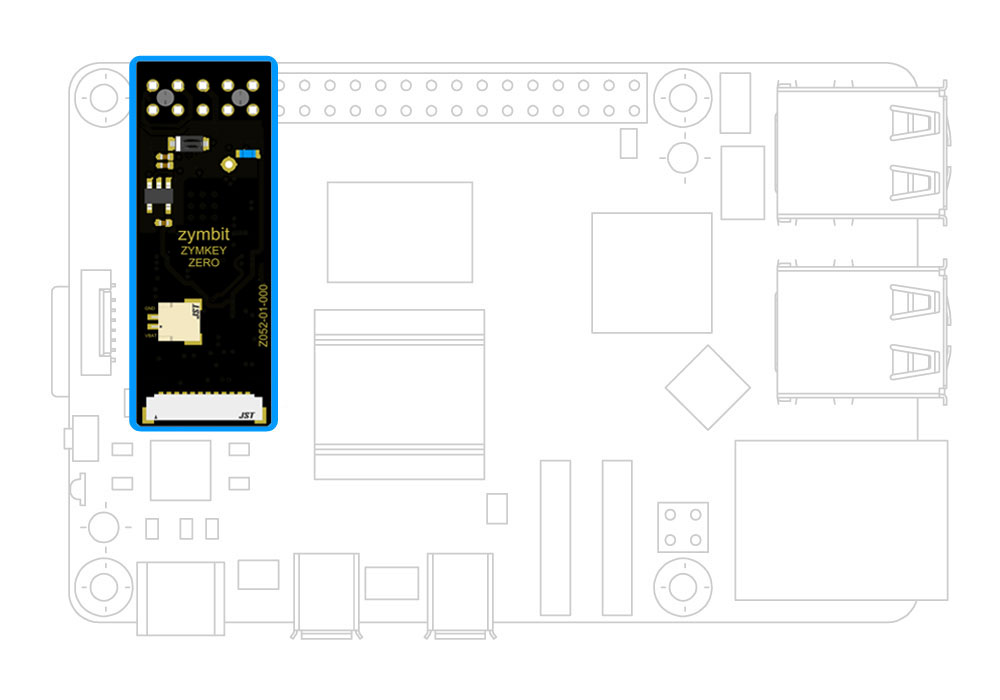

ZYMKEY fitted to Raspberry Pi 5 outline drawing

Overview

SD card protection made easy

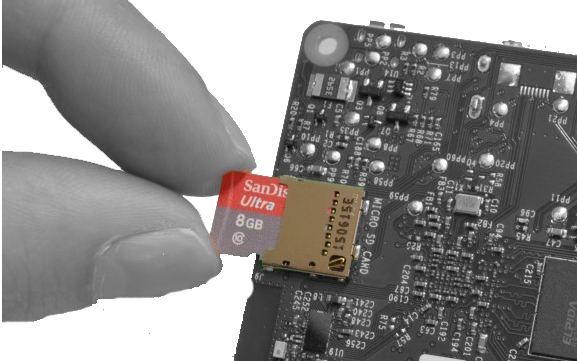

SD card removal from Raspberry Pi

Essential security for Raspberry Pi. Removing an SD card and copying contents is easy, especially for unattended devices deployed outside the security of a physical building. ZYMKEY provides essential physical and digital security features to protect against such real world exploits.

Features:

  • File system encryption
  • Key storage & generation
  • Cryptographic engine
  • Measured system identity
  • Physical tamper sensors
  • Data encryption & signing
  • Ultra low power
  • Real time clock

Easy to integrate module

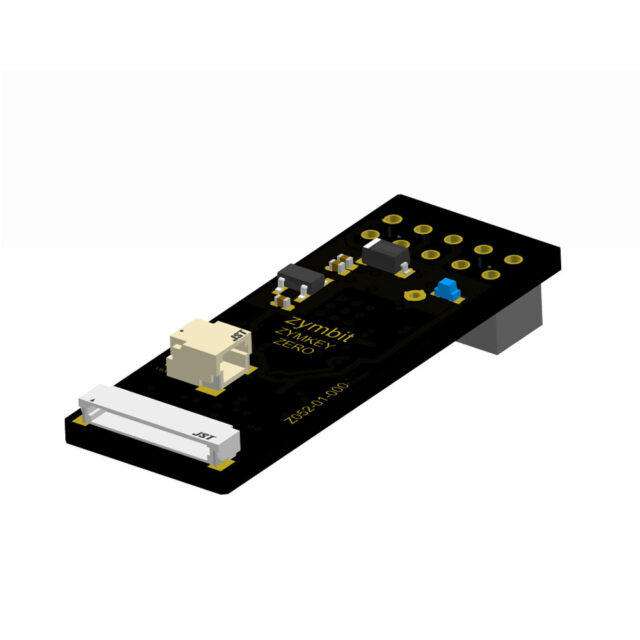

ZYMKEY oblique CAD view

  • Plugs on to GPIO headers of Raspberry Pi
  • Uses GPIO4, I2C, +5V, GND (can be remapped)
  • APIs in Python, C++, C

File system encryption

  • Encrypt root file system with dm-crypt
  • Protect data, applications and credentials
  • ZYMKEY integrates seamlessly with LUKS key manager
  • Step-by-step guide with prewritten scripts that streamline the process

Perimeter tamper detect

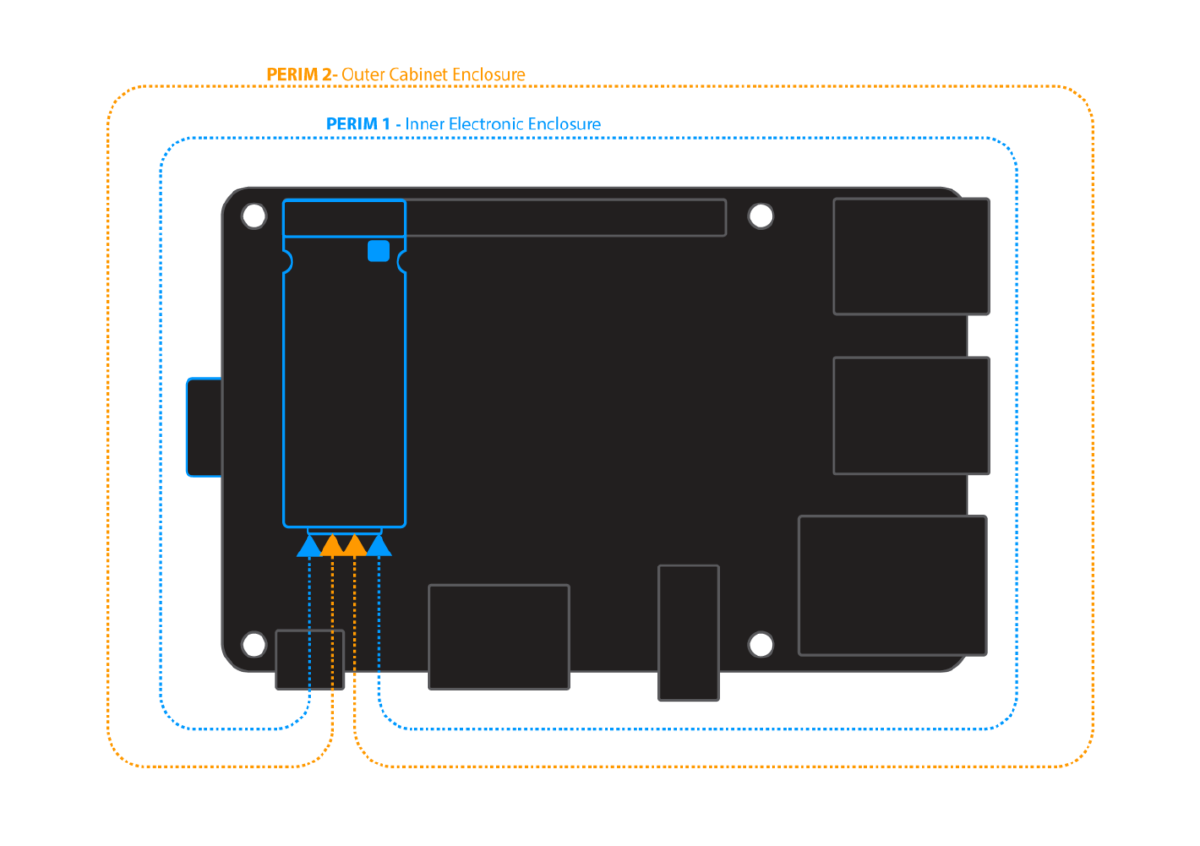

ZYMKEY perimeter detect circuits

  • Two independent perimeter circuits provide layered protection
  • User configured policies and actions
  • Notify or destroy keys on perimeter-breach event
  • Continuous operation with onboard battery

Layered security with hardware root of trust

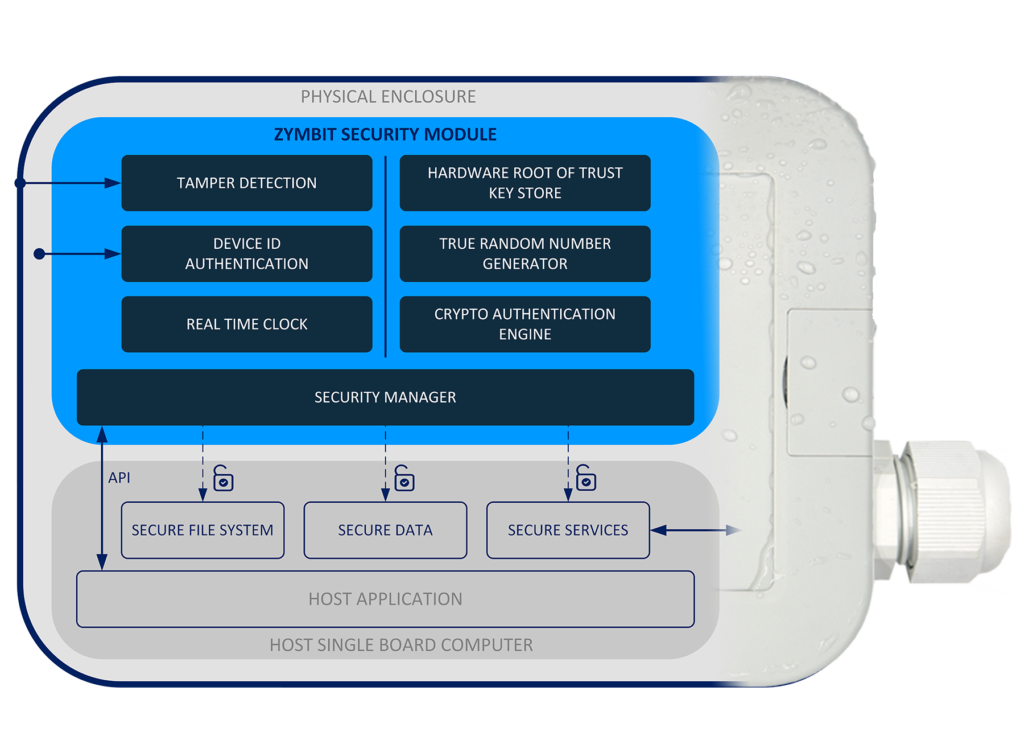

ZYMKEY embedded security module block diagram

Zymbit security modules provide multiple layers of physical and digital protection for your digital assets, managed through a simple API.

  • Hardware root of trust
  • Secure key generation & storage
  • File system encryption
  • Data encryption & signing
  • Perimeter tamper sensors
  • Measured system identity & authentication
  • Real time clock

Easy integration with AWS

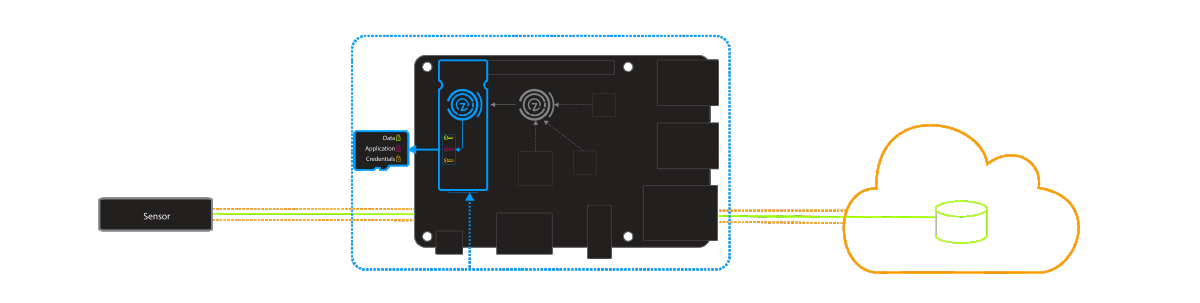

Trusted data from sensor to AWS IoT

TLS Client Certificate Authentication:

  • Generate Zymkey secured client certs
  • Bring Your Own Certificate or use AWS
  • Attach custom policies
  • Secure connect client authenticated TLS

Just In Time Client Registration:

  • Simplifies large scale fleet deployments
  • Lambda function client registration

Specifications

CategoryDetails
Private/public key pairs512
Foreign public keys128
Cryptographic servicesECC KOBLITZ P-256 (secp256k1), ED25519, X25519, ECDH (FIPS SP800-56A), TRNG (NIST SP800-22), ECC NIST P-256 (secp256r1), ECDSA (FIPS186-3), AES-256 (FIPS 197)
Wallet functionsBIP 32 - hierarchical deterministic wallet, BIP 39 - master seed mnemonic generator, SLIP 39 - with Shamir’s secret sharing, BIP 44 - multi-account support
Tamper sensors2 x perimeter breach detection circuits, main power monitor
Software APIPython, C++, C
Physical formatPlug in mini-hat (pins 1-10)
Dimensions39.0 x 14.0 x 5.3 mm (1.53 x 0.55 x 0.21 inches)
Board connectorsGPIO: 5x2pin header 0.1inch. Perimeter: 12pin JST 0.8mm receptacle (mates with JST 12SUR-32S). Battery: 2pin JST 0.8mm receptacle (mates with JST 2SUR-32S)
Host interfaceAlways encrypted channel with ephemeral ECC keys, I2C default address (user changeable), GPIO4 (user changeable)
Production mode lockSoftware API command
Measured system identity & authenticationStandard factors include RPi host, SD card, Zymkey
Data encryption & signingEncrypt root file system with dm-crypt (LUKS key manager hook), encrypt data blobs with “zblock” function, encrypt data in flight with OpenSSL integration
Real time clock24-36 month operation, application dependent, 5ppm accuracy
Backup batteryUsed for RTC and perimeter circuits. Requires JST connected coin cell, RPi 5 RTC battery, or similar (not included)
Backup battery monitorYes
Last gasp battery removal detectionNo
OEM custom featuresContact Zymbit
Example cipher suitesAWS-IOT: TLS_ECDHE_ECDSA_AES256_SHA, MS-AZURE: TLS_ECDHE_ECDSA_AES_128_GCM_SHA256_P256
Accessories & related productsBackup battery, perimeter cables
Warranty18 months
CompatibilityPi Zero, 4, 5, CM4, CM5
