Secure Edge Node 500

Enterprise grade secure compute hardware for zero trust environments

Enterprise grade compute hardware that’s secure and easily customized.

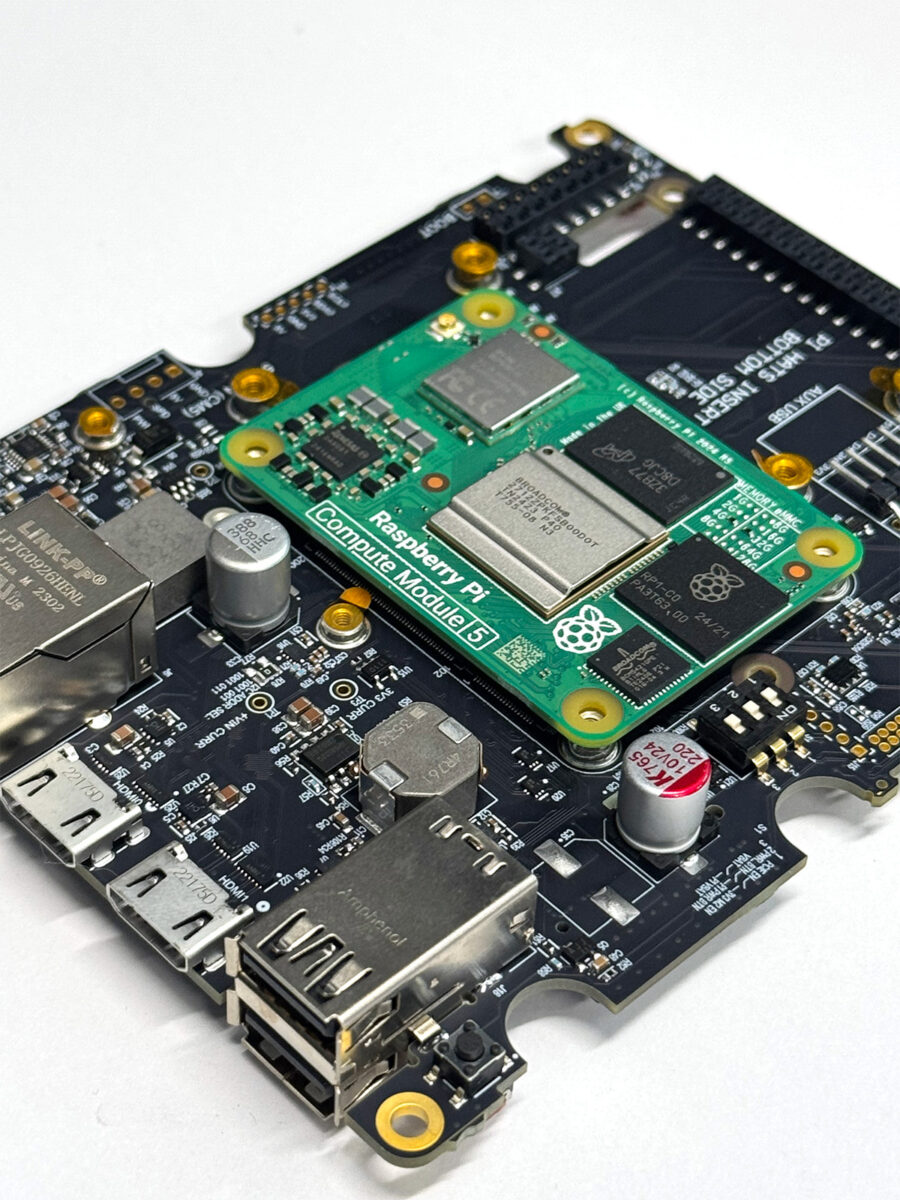

Secure Edge Node 500 by Zymbit - enterprise grade secure compute hardware

Quad-core Cortex-A76, 64-bit SoC @ 2.4GHz
Secure compute module, Linux OS
Fully enclosed, tamper responsive
Hardware security supervisor
Motherboard, extensive IO
Accessories, Enclosure
Pre-configured security and software

Overview

The secure modular compute platform

Engineered for a lifetime of reliable operation in zero trust environments.

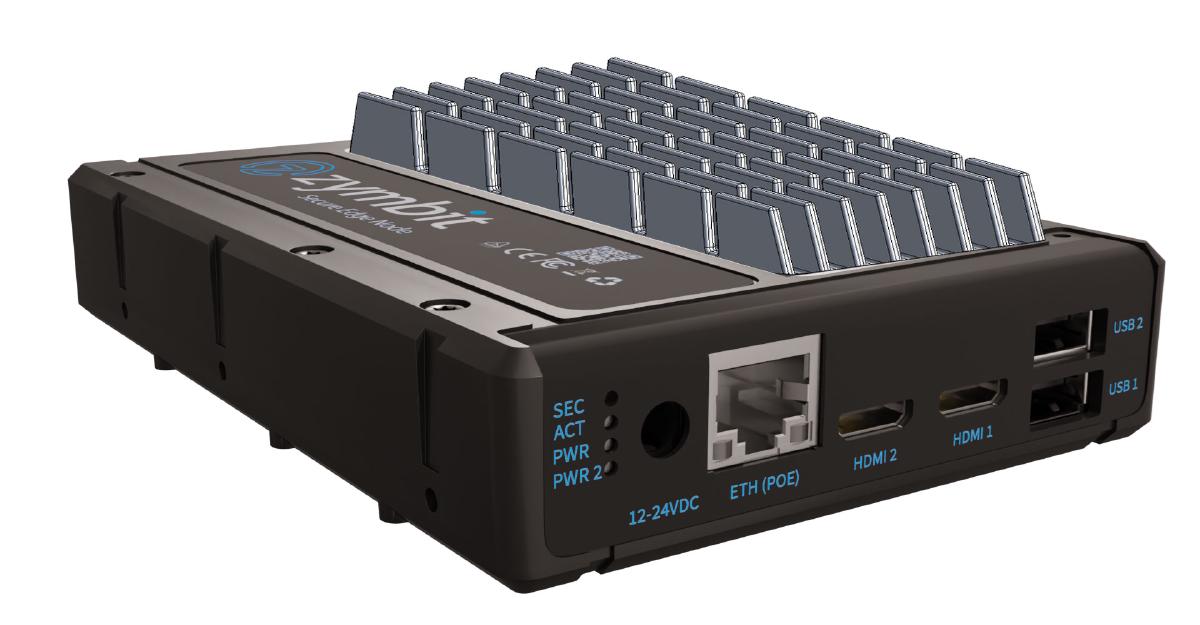

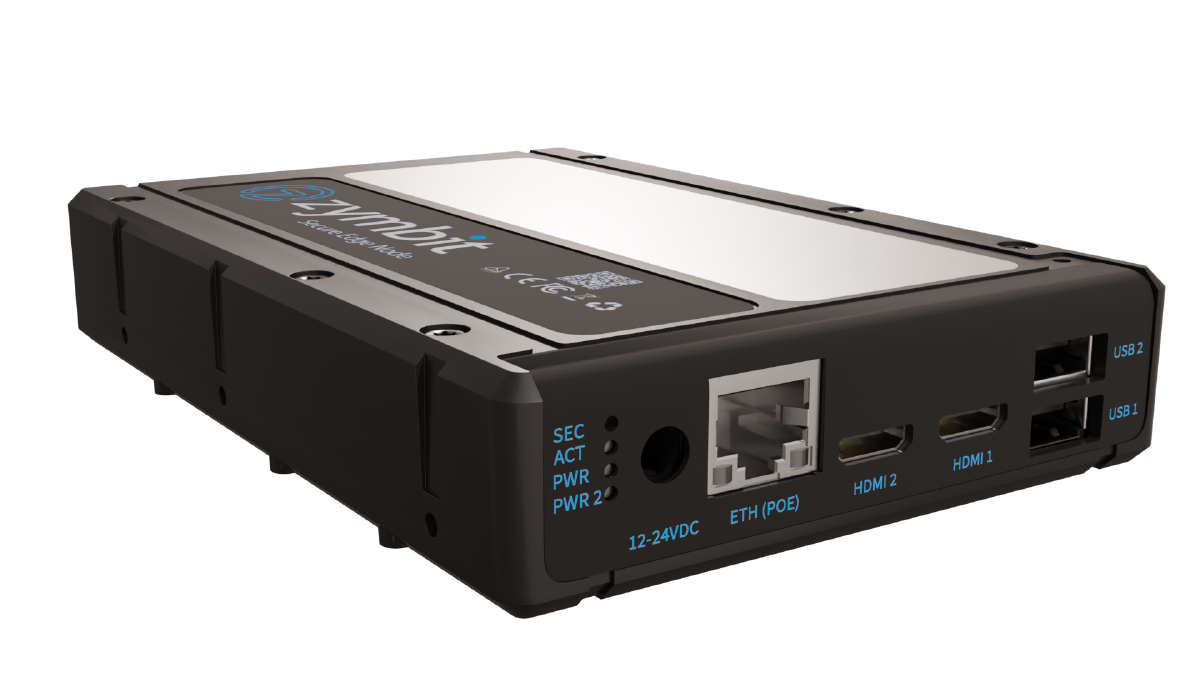

Secure Edge Node 500 front and side view

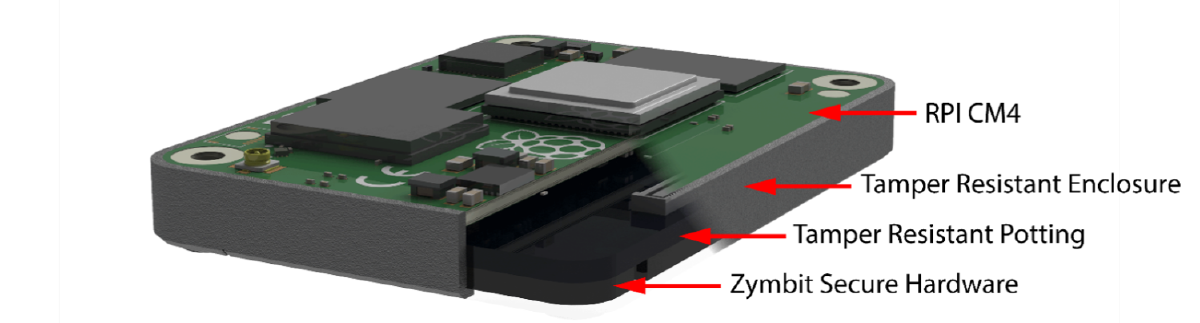

Secure Compute Module

Broadcom BCM2712 quad-core Cortex-A76 (ARM v8) 64-bit SoC @ 2.4GHz
Hardware secured compute module
Verified boot, encrypted file system
Dedicated cryptographic engine
Optional hardware HD wallet
Fully encapsulated security hardware

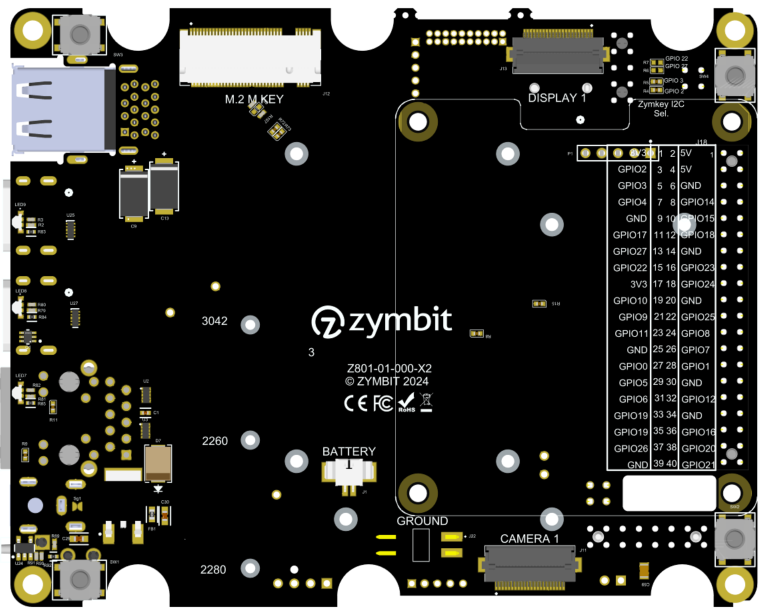

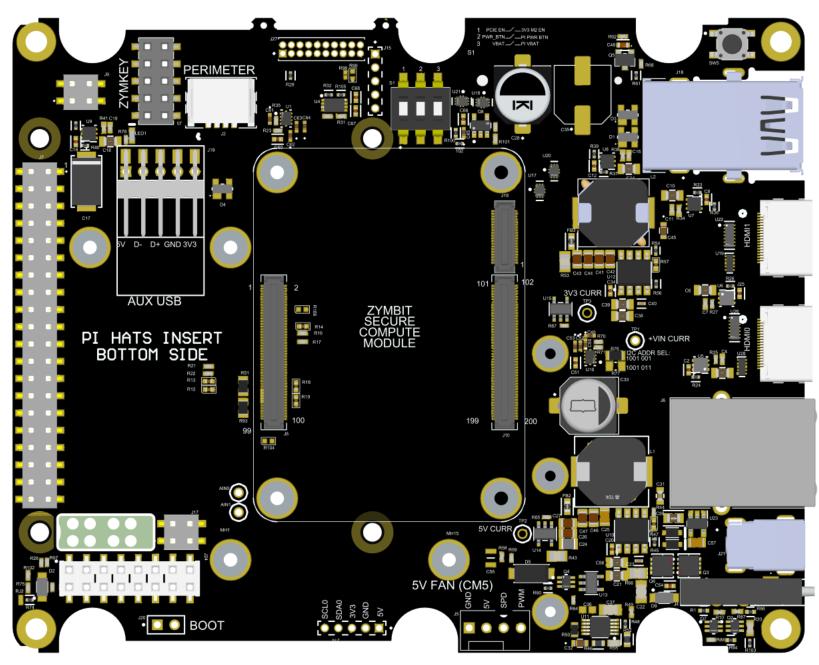

Professional base board, IO & power

Secure Side (fixed functionality)

Choice of Compute and Security Supervisor (Zymbit Secure Compute Module or Pi CM4 + ZYMKEY)
2x USB 2.0 Type A, 2x HDMI mini, 1G Ethernet
55W protected power supply – 12 to 24 VDC input
Optional ZYMKEY4 security module, Optional fan

User Side (designed to be easily customized)

M.2 M-Key supports PCIE NVME storage up to 4TB
GPIO header, 2x MIPI CSI Camera (DSI Display Out OEM option)
Auxiliary backup battery, PoE++ 802.bt 55W optional module
Integrated tamper switches and aux circuits

Accessories

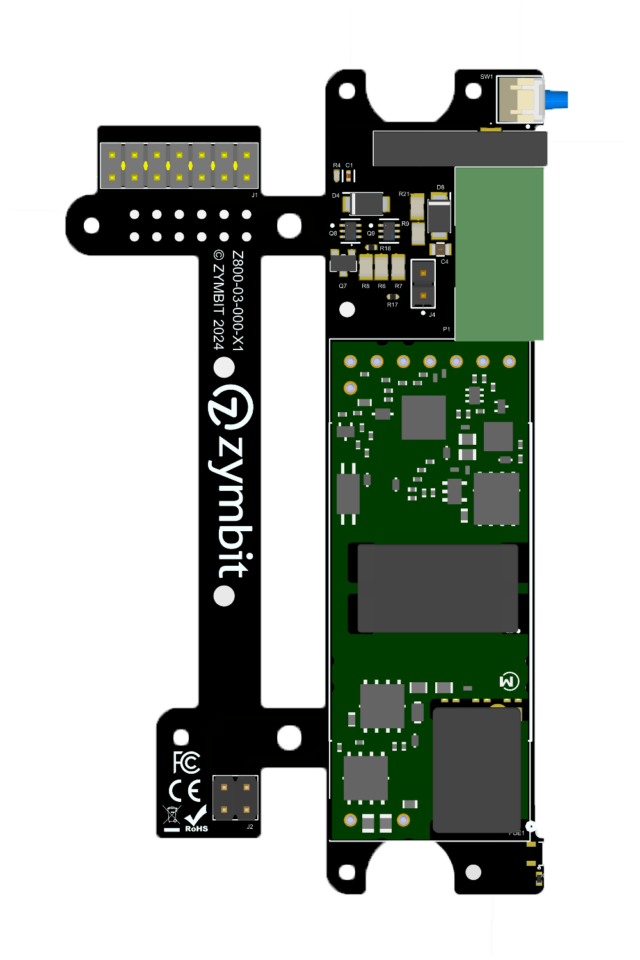

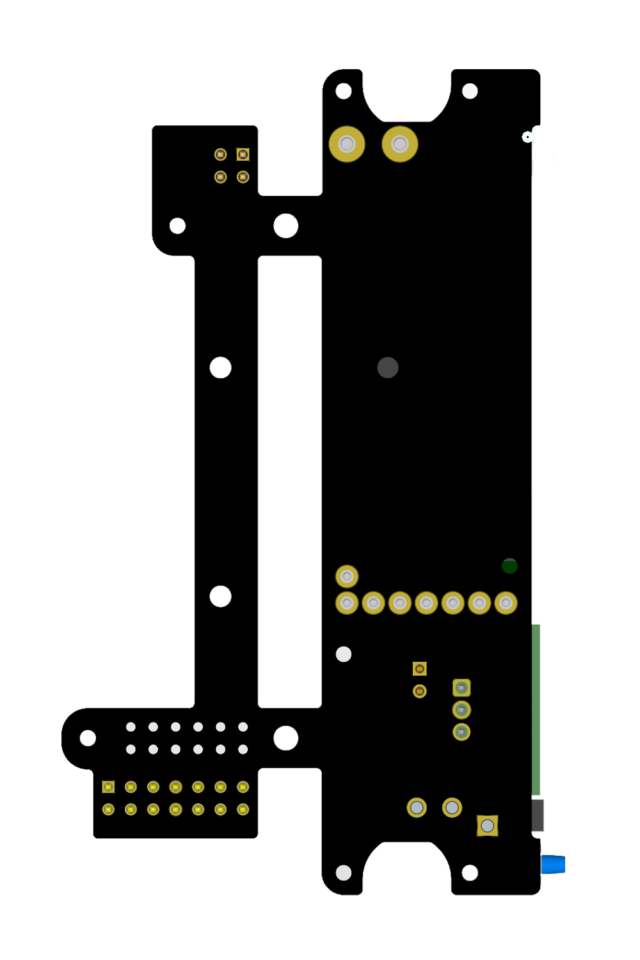

POE power module

PoE++ 802.bt 55W
LED status indicators

Third party accessories

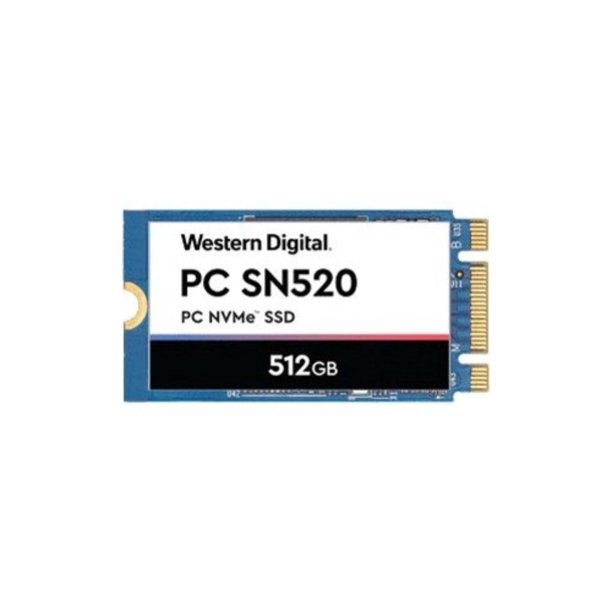

M.2 storage

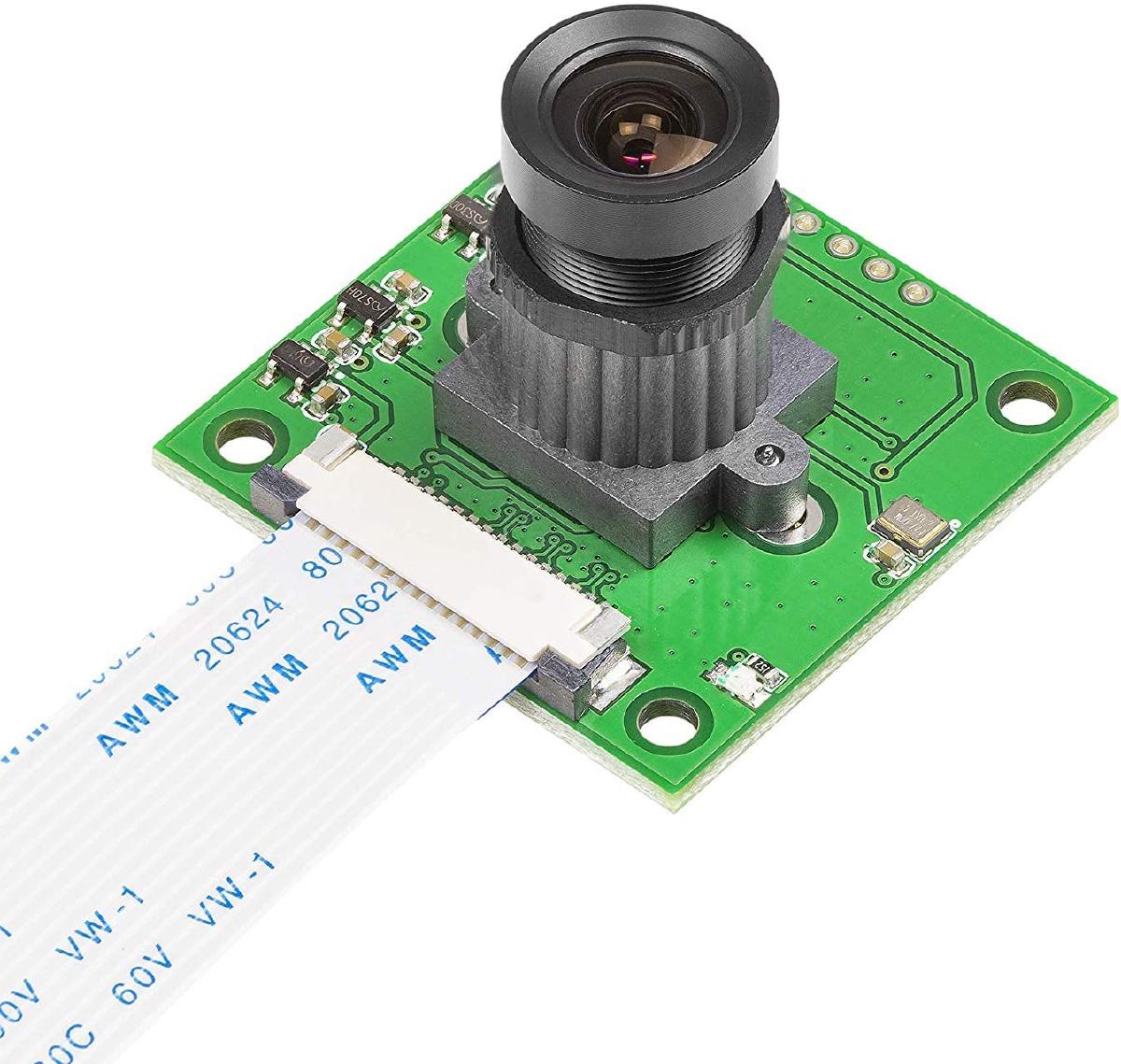

Cameras
Industrial IO
Displays

Tough expandable enclosure – Standard Type D35

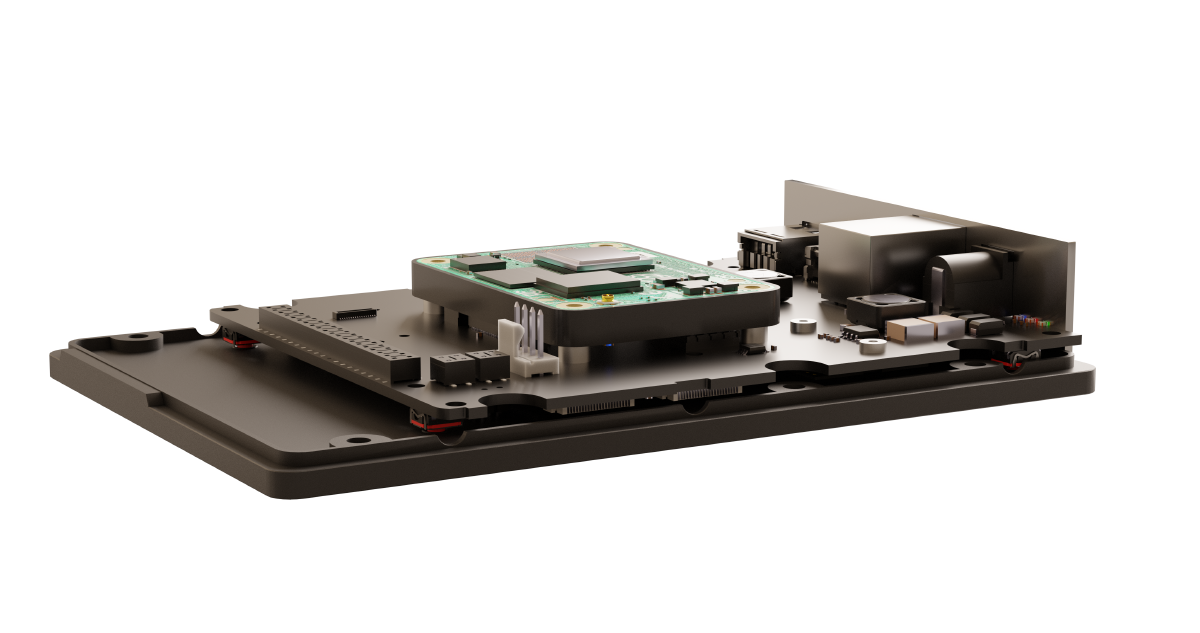

Secure Edge Node 500 enclosure rear corner view

Rugged plastic and metal construction
Tamper switch compatible, Integrated heatsink
Customizable front connector plate, Stackable
26.7 x 100.3 x 148 mm (1.05 x 3.96 x 5.80 inches)
Fits into standard 3.5" drive bay caddy
Optional SATA power connector, Optional POE module

Pre-configured the way you want

To simplify your life, the SEN 500 can be shipped with a choice of pre-configured OS, application software and security policies that align with your product development stage.

Develop

Optimized for maximum development flexibility
Standard OS builds & tools
Partially encrypted file system
Relaxed security policies, open ports

Secure

Defined security policies enabled
Optimized OS build
Fully encrypted file system
Supervised boot configured
Finalize configuration with Security Sanitization Guide and Scripts

Deploy

Customer-specific configurations loaded, tested, deployed
Standard Zymbit curated configurations available

Specifications

Category	Details
Highlights	Secure edge compute node with Linux CPU, powerful RPi5 compute module quad core A76, integrated Zymbit hardware security module, extensive security and key management features, Bootware and Tamperware support
Compute Resources	Pi Compute Module 5, Broadcom BCM2712 quad-core Cortex-A76 (ARM v8) 64-bit SoC @ 2.4GHz, up to 16GB LPDDR4-4267 SDRAM with ECC, up to 64GB eMMC Flash memory, 4Kp60 HEVC decoder, OpenGL ES 3.1 graphics, Vulkan 1.2
Secure Enclosure	Tamper responsive, multiple tamper sensors. D35 size envelope, fits into standard 3.5" drive bay caddy
Dimensions	26.7 x 100.3 x 148 mm (1.05 x 3.96 x 5.80 inches)
Weight	8.2 oz / 230 g (12VDC standard), 9.2 oz / 260 g (POE option)
Power	Standard: 12-24VDC +-20%, 5A-2A input, heavy duty barrel jack (2.1mm ID x 5.5mm OD x 11.0mm). Optional: PoE++ 802.3bt, 51W max per node, 30W available for add-on devices
External Interfaces	2x mini HDMI, 2x USB 2.0 Type A, 1x Gigabit Ethernet (IEEE 1588, optional POE)
External Indicators	SCM Power (red), SCM Activity (green), SCM Status (blue), User Defined (RGB)
Internal Interfaces	1x AUX USB 2.0 header, 2x CSI Camera (1x DSI Display OEM only), 1x 40-pin GPIO header, 1x M.2 M-Key, 1x battery connector for HSM (Molex 51021-0200-B, 1.25mm pitch), 1x battery connector for Pi RTC, 1x Auxiliary HSM connector 12pin JST, 1x 5V fan with tacho and PWM (optional)
Operating System	Linux, Raspberry Pi OS 64bit (other Debian for OEM)
Software API	Python, C++, C
Bootware Support	Bootware Core, Enterprise and OEM
Hardware Security Module	Zymbit Hardware Security Supervisor, cryptographically and physically bonded to Compute Module
Measured system identity	Standard factors include RPi host, Zymbit HSM, eMMC memory
Tamper Sensors	2x perimeter breach detection circuits, accelerometer, main/battery power monitors, battery removal monitor
Data encryption & signing	dm-crypt with LUKS, zblock function, OpenSSL integration
Cryptographic Services	ECC KOBLITZ P-256, ED25519, X25519, ECDH, TRNG, ECC NIST P-256, ECDSA, AES-256
Example cipher suites	AWS-IOT: TLS_ECDHE_ECDSA_AES256_SHA, MS-AZURE: TLS_ECDHE_ECDSA_AES_128_GCM_SHA256_P256
Private/public key pairs	512
Foreign public keys	128
Wallet Functions	BIP 32, BIP 39, SLIP 39, BIP 44
Real time clock	36-60 months with external CR2032, 5ppm accuracy
Backup battery	Used for RTC and perimeter circuits
Backup battery monitor	Yes
Last gasp	Yes
Environmental	Standard: 0C-60C non-condensing. Optional: -20C to 70C
Warranty	Standard: 18 months. Extended: up to 5 years

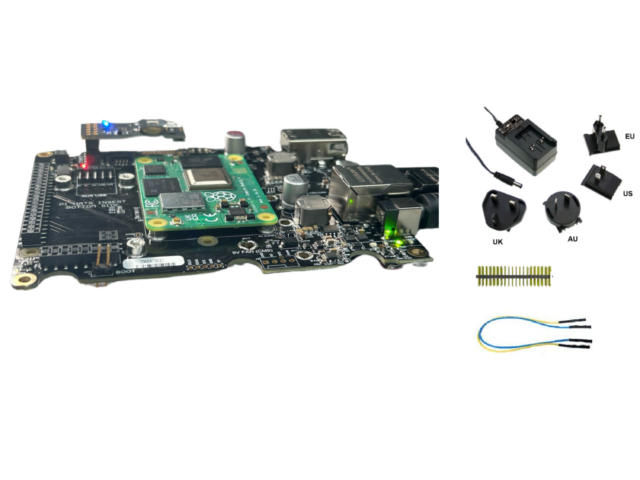

Accessories	Prototyping Kit
OEM custom features	Contact Zymbit
